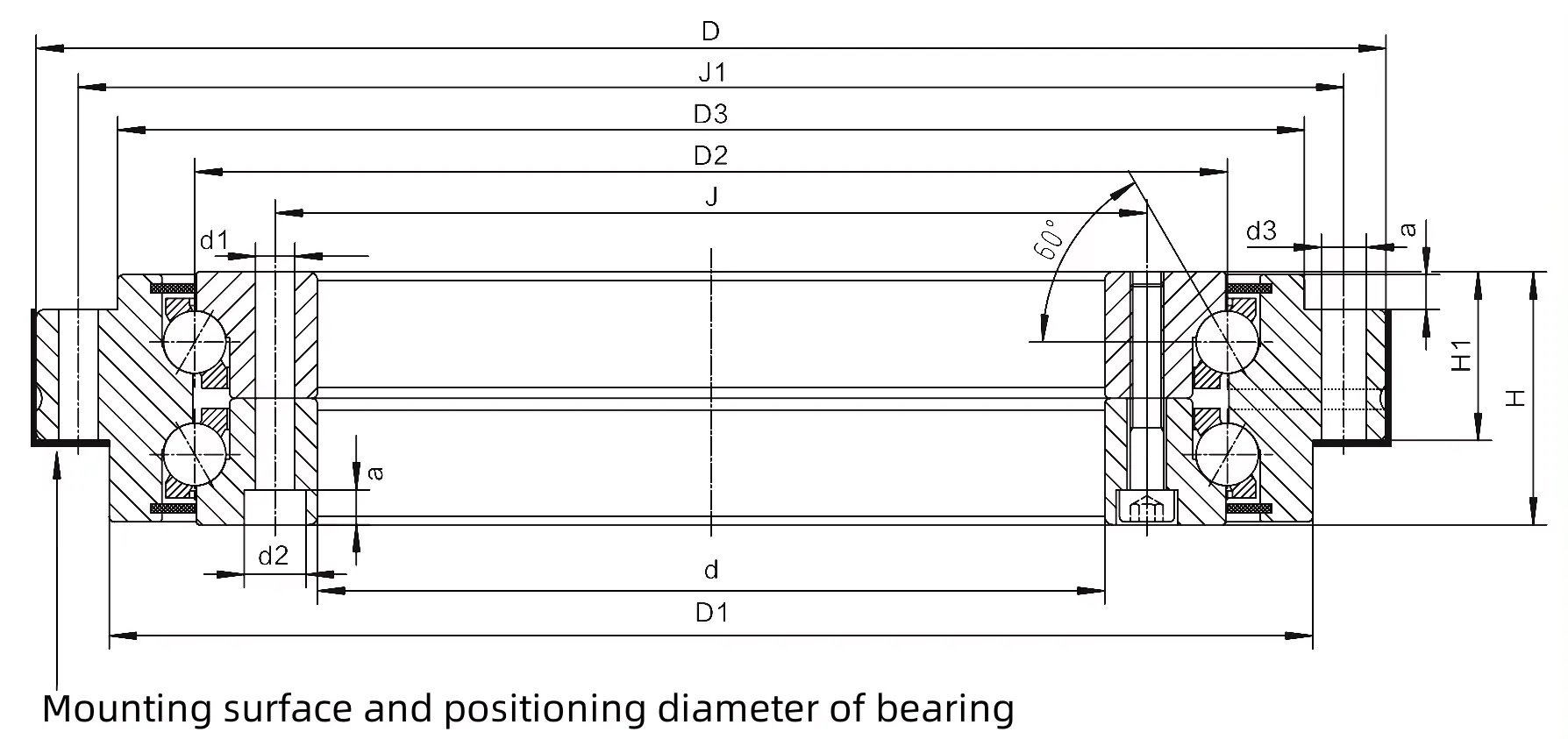

ZKLDF axial angular contact ball bearing have a unity outer ring, 2 inner ring, 2 rows of ball rollers and cage assembly, and contact angle is 60°. The outer ring and inner rings have fitting holes and easy to fit by joint bolt. The unit is located by means of retaining screws for the safety of transport and handing.
ZKLDF axial angular contact ball bearings have double side sealing covers which can aginst dirt, impurities and avoid grease leak.ZKLDF turntable bearings using complex barium-base grease, can add the grease through grease holes.
ZKLDF axial angular contact ball bearings are designed with 60° contact angle and 2 rows of ball rollers, which can support radial load, double axial loads and tilting moments. Due to the special design with copper cages, the bearing has higher strenth and lower frictioin torque. So ZKLDF turntable bearings is especially applied to the situatioin with high speed, long time running, high stiffness and high precision, ensure high rotary accuracy, applied to high speed rotary worktable, milling, grinding, honing head and precision measuring instruments.
Model
Dimension

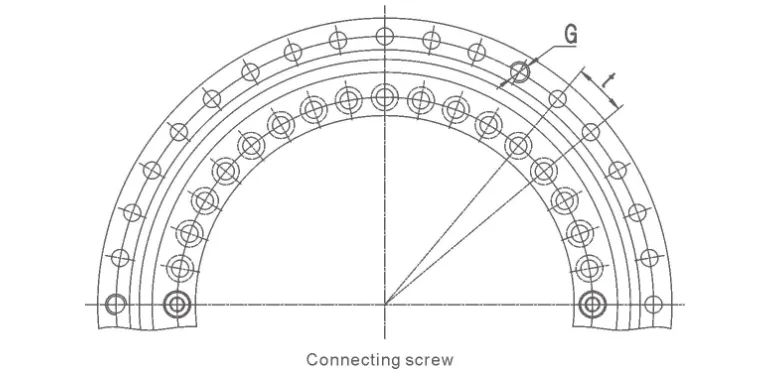

Fixing hole
Joint
screw
QTY
Lifting hole
Pitch
Screw
tighten
torque
Screw tighten torque
Limit speed
Bearing friction torque
Weight
Axial
d
D
H
H1
D1
D2
D3
J
J1
a
Innerring
Outerring
Dynamic
Static
mm
d1
d2
QTY
d3
QTY
MA
Ca
Coa
Grease
mm
mm
G
QTY
QTY*t
Nm
KN
r/min
Nm
Kg
ZKLDF100
100
185
38
25
160
136
158
112
170
5.4
5.6
10
16
5.6
15
2
M5
3
18*20°
14
67
251
2800
1.6
4.5
ZKLDF120
120
210
40
26
184
159
181
135
195
6.2
7
11
22
7
21
2
M8
3
24*15°
14
72
315
2400
2
6
ZKLDF150
150
240
40
26
214
188
211
165
225
6.2
7
11
34
7
33
2
M8
3
36*10°
14
76
365
2000
3
7.5
ZKLDF180
180
280
43
29
244
221
241
194
260
6.2
7
11
46
7
45
2
M8
3
48*7.5°
14
85
440
1700
3
8
ZKLDF200
200
300
45
30
274
243
271
215
285
6.2
7
11
46
7
45
2
M8
3
48*7.5°
34
112
550
1600
4.5
11
ZKLDF260
260
385
55
36.5
345
313
348
280
365
8.2
9.3
15
34
9.3
33
2
M12
3
36*10°
34
155
920
1200
7.5
22
ZKLDF325
325
450
60
40
415
380
413
342
430
8.2
9.3
15
34
9.3
33
2
M12
3
36*10°
34
165
1110
1000
11
28
ZKLDF395
395
525
65
42.5
486
450
488
415
505
8.2
9.3
15
46
9.3
45
2
M12
3
48*7.5°
34
214
1470
800
16
39
ZKLDF460
460
600
70
46
560
520
563
482
580
8.2
9.3
15
46
9.3
45
2
M12
3
48*7.5°
34
255
1860
700
21
50
ZKLDF580
580
750
90
60
702
656
700
610
720
11
11.4
18
45
11.4
42
2
M12
6
48*7.5°
68
282
2150
500
40
82
