YRT Rotary Table Bearing

YRT rotary table bearings have high axial and radial load capacity, high tilt stiffness and extremely high precision. Suitable for CNC rotary tables and bearing arrangements in measurements and experiments.

SEND INQUIRY

Description

YRT rotary table bearings are designed with a radial full roller, two groups of axial needle roller, cage assembly, an out ring, an L-section inner and the second inner ring. The out ring and inner ring have fixing holes, so the bolt can fix the bearings directly. YRT rotary table bearing structure can bear double-direction axial load, radial load and tilting moment. This series bearing have preload before leaving factory, no need to adjust clearance when installed.

YRT rotary table bearing is particularly suitable for the situation of high precision, high stiffness, low speed, and short rotate period such as CNC rotary table, rotating index table and revolving milling heads. This kind of bearing has axial and radial running precision for your chosen.

Bearing characteristics
1. High precision. P4 precision, P2 precision
2. High rigidity. This series bearing have preload
3. High load. This series bearing can bear double-direction axial load, radial load and tilting moment
4. High speed. YRTS series bearing can be applied to the situation of high rotating speed.

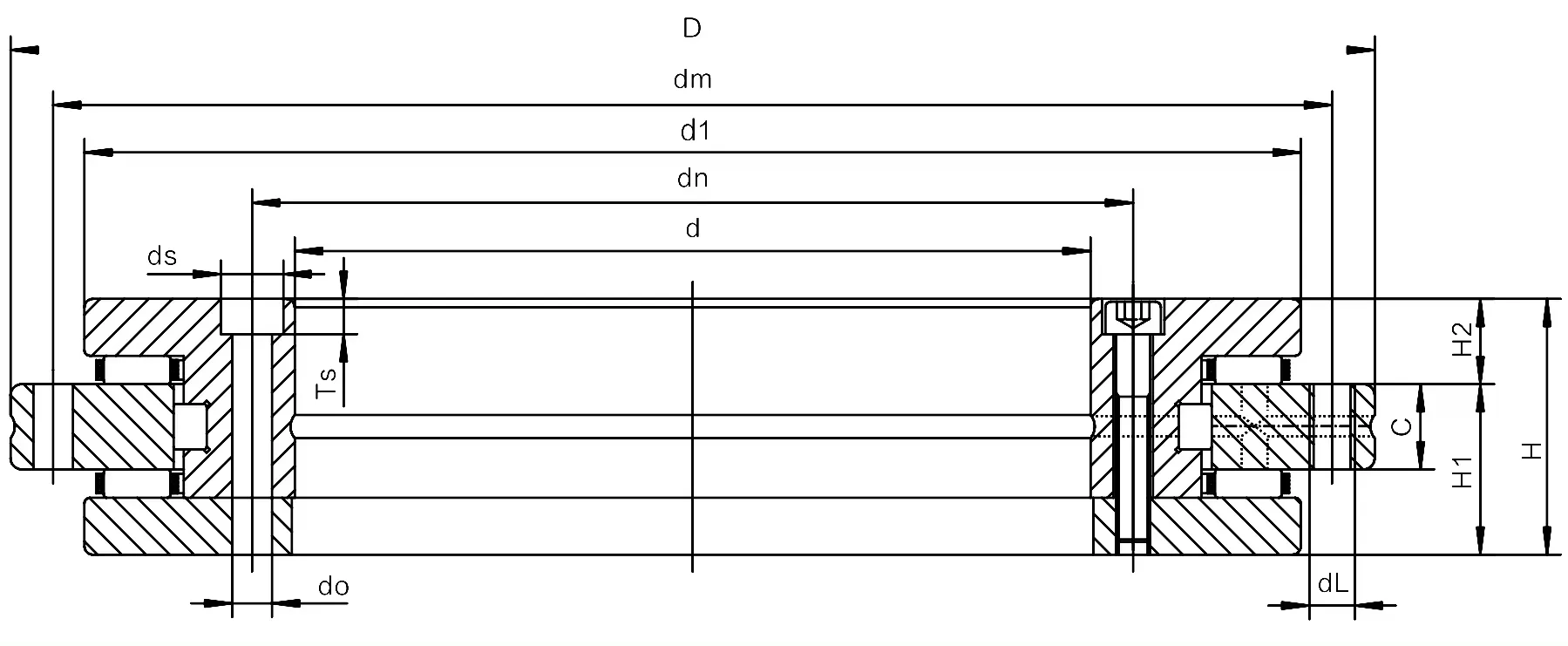

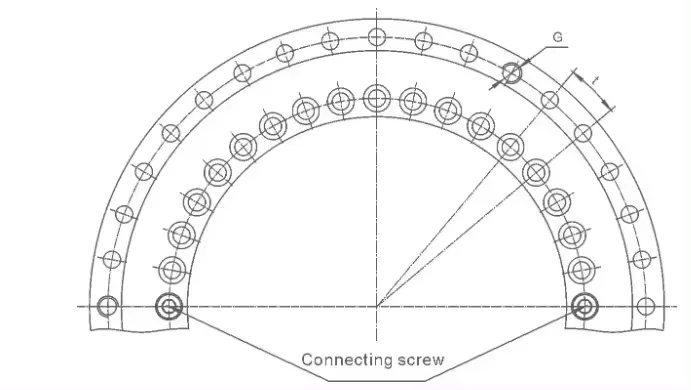

Model	Dimension									Fixing hole						Joint screw QTY	Lifting hole		Pitch	Screw tighten torque	Basic rated load				Limit speed	Bearing friction torque	Weight
	Dimension									Fixing hole											Axial		Radial
	d	D	H	H1	H2	C	d1	dn	dm	Inner ring				Outer ring							Dynamic	Static	Dynamic	Static
	mm									do	ds	Ts	QTY	dL	QTY					MA	Ca	Coa	Cr	Cor	Grease
	mm									mm			QTY	mm	QTY		G	QTY	QTY*t	Nm	KN				r/min	Nm	Kg
YRT50	50	126	30	20	10	10	105	63	116	5.6	9	4.2	10	5.6	12	2	/	/	12*30°	8.5	38	158	28.5	49.5	600	2.5	1.6
YRT80	80	146	35	23.35	11.65	12	130	92	138	5.6	10	4.2	10	4.6	12	2	/	/	12*30°	8.5	56	255	42.5	100	530	3	2.4
YRT100	100	185	38	25	13	12	160	112	170	5.6	10	5.4	16	5.6	15	2	M5	3	18*20°	8.5	76.5	415	47.5	120	430	3	4.1
YRT120	120	210	40	26	14	12	184	135	195	7	11	6.2	22	7	21	2	M8	3	24*15°	14	102	540	52	143	340	7	5.3
YRT150	150	240	40	26	14	12	214	165	225	7	11	6.2	34	7	33	2	M8	3	36*10°	14	112	630	56	170	320	10	6.2
YRT180	180	280	43	29	14	15	244	194	260	7	11	6.2	46	7	45	2	M8	3	48*7.5°	14	118	710	69.5	200	280	12	7.7
YRT200	200	300	45	30	15	15	274	215	285	7	11	6.2	46	7	45	2	M8	3	48*7.5°	14	120	765	81.5	220	260	14	9.7
YRT260	260	385	55	36.5	18.5	18	345	280	365	9.3	15	8.2	34	9.3	33	2	M12	3	36*10°	34	160	1060	93	290	200	20	18.3
YRT325	325	450	60	40	20	20	415	342	430	9.3	15	8.2	34	9.3	33	2	M12	3	36*10°	34	275	1930	120	345	170	40	25
YRT395	395	525	65	42.5	22.5	20	486	415	505	9.3	15	8.2	46	9.3	45	2	M12	3	48*7.5°	34	300	2280	186	655	140	55	33
YRT460	460	600	70	46	24	22	560	482	580	10	15	8.2	46	10	45	2	M12	3	48*7.5°	34	355	2800	200	765	120	70	45
YRT580	580	750	90	60	30	30	700	610	720	11.4	18	11	46	11.4	42	2	M12	6	48*7.5°	68	490	4250	228	965	80	140	89
YRT650	650	870	122	78	44	34	800	680	830	14	20	13	45	14	42	2	M12	6	48*7.5°	116	1040	8000	490	1800	65	200	170
YRT850	850	1095	124	80.5	43.5	37	1018	890	1055	18.5	26	17	57	18.5	54	2	M16	6	60*6°	284	1000	8650	455	1730	50	300	253
YRT950	950	1200	132	86	46	40	1130	990	1160	18.5	26	17	57	18.5	54	2	M17	6	60*6°	284	1290	11400	530	2040	40	600	312
YRT1030	1030	1300	145	92.5	52.5	40	1215	1075	1255	18.5	26	17	66	18.5	66	2	M18	6	72*5°	284	1380	12000	620	2650	35	800	375
YRT1200	1200	1490	164	108	56	52	1410	1240	1445	18.5	26	17	66	18.5	66	2	M19	6	72*5°	284	1435	12850	745	2800	25	1000	450
