Crossed Roller Slewing Bearing(XSU Series)

XSU14 Series Crossed Roller Slewing Bearing

XSU14 series Crossed roller slewing bearing, cross roller turntable bearing and four-point contact ball turntable bearing, without gear ring
  • Description

XSU14 series Crossed roller slewing bearing, cross roller turntable bearing and four-point contact ball turntable bearing, without gear ring



XSU14 series Crossed roller slewing bearing, cross roller turntable bearing and four-point contact ball turntable bearing, without gear ring, which can be installed with seal, equipped with oil cup, adjusted the clearance torque in a small range, and the accuracy can meet the requirements of various types of working conditions.



The turntable bearing can bear large radial load, axial load, overturning moment and other comprehensive loads at the same time, which combine multiple functions such as support, rotation, transmission and fixation, and has compact structure, simple installation and convenient maintenance, which usually used in heavy and low speed situations, such as lifting machinery, excavators, turntables, wind turbines, astronomical telescopes, tank turrets and other devices, and is widely used.

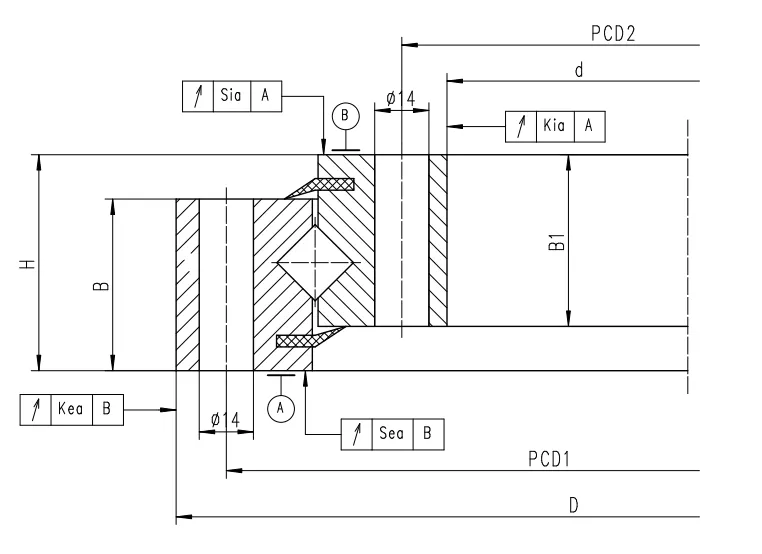

Model Main  Dimensions Rotation   Accuracy Installation   Dimension Basic   Rated Load Clearance
D d B B1 H P5 Outer Ring Inner Ring Axial Radial
Kea Kia Sea Sia Pitch Center Distance Mounting Hole Pitch Center Distance Mounting Hole Dynamic Static Dynamic Static
XSU140414 485 343 44.5 44.5 56 0.06 0.06 0.04 0.04 460 24-φ14 368 24-φ14 229 520 146 250 0.01~0.03
XSU140544 614 474 44.5 44.5 56 0.07 0.06 0.04 0.04 590 32-φ14 498 32-φ14 270 680 170 330 0.01~0.03
XSU140644 714 574 44.5 44.5 56 0.08 0.07 0.05 0.05 690 36-φ14 598 36-φ14 290 800 185 395 0.01~0.04
XSU140744 814 674 44.5 44.5 56 0.08 0.08 0.05 0.05 790 40-φ14 698 40-φ14 315 930 200 445 0.01~0.04
XSU140844 914 744 44.5 44.5 56 0.09 0.08 0.05 0.05 890 40-φ14 798 40-φ14 340 1050 215 510 0.01~0.04
XSU140944 1014 874 44.5 44.5 56 0.09 0.09 0.06 0.06 990 44-φ14 898 44-φ14 360 1170 227 580 0.01~0.05
XSU141094 1164 1024 44.5 44.5 56 0.11 0.11 0.07 0.07 1140 48-φ14 1048 48-φ14 390 1360 246 670 0.01~0.05
