| Model NO. | Dimensions |
Shoulder Heightd
(mm)
|
Basic Load Rating(Axial) | Basic Load Rating(Radial) | Weight | ||||||||
| Inner Ring | Outer Ring | Roller Pitch Diameter | Width | Oil Holes | Chamfer | Ca | C0a | Cr | C0r | ||||
| d | D | Dpw | B B1 | S | rmin | ds | Dh | kN | kN | kN | kN | kg | |
| SX011814 | 70 | 90 | 80 | 10 | 1.2 | 0.6 | 79.5 | 80.5 | 18 | 60 | 12 | 30 | 0.3 |
| SX011818 | 90 | 115 | 102 | 13 | 1.2 | 1 | 101.5 | 102.5 | 26 | 96 | 17 | 47 | 0.4 |
| SX011820 | 100 | 125 | 112 | 13 | 1.2 | 1 | 111.5 | 112.5 | 28 | 106 | 18 | 52 | 0.5 |
| SX011824 | 120 | 150 | 135 | 16 | 1.5 | 1 | 134.4 | 135.6 | 41 | 153 | 26 | 75 | 0.8 |
| SX011828 | 140 | 175 | 157 | 18 | 1.5 | 1.1 | 156.3 | 157.7 | 64 | 237 | 41 | 116 | 1.1 |
| SX011832 | 160 | 200 | 180 | 20 | 1.5 | 1.1 | 179.2 | 180.8 | 69 | 272 | 44 | 133 | 1.7 |
| SX011836 | 180 | 225 | 202 | 22 | 2 | 1.1 | 201.2 | 202.8 | 98 | 381 | 63 | 187 | 2.3 |
| SX011840 | 200 | 250 | 225 | 24 | 2 | 1.5 | 224.2 | 225.8 | 106 | 425 | 68 | 208 | 3.1 |
| SX011848 | 240 | 300 | 270 | 28 | 2 | 2 | 269.2 | 270.8 | 149 | 612 | 95 | 300 | 5.3 |
| SX011860 | 300 | 380 | 340 | 38 | 2.5 | 2.1 | 339.2 | 340.8 | 245 | 1027 | 156 | 504 | 12 |
| SX011868 | 340 | 420 | 380 | 38 | 2.5 | 2.1 | 379.2 | 380.8 | 265 | 1148 | 167 | 563 | 13.5 |
| SX011880 | 400 | 500 | 450 | 46 | 2.5 | 2.5 | 449 | 451 | 385 | 1699 | 244 | 833 | 24 |
| SX0118/500 | 500 | 620 | 560 | 56 | 2.5 | 3 | 559 | 561 | 560 | 2538 | 355 | 1244 | 44 |
ZK series hollow rotating platform bearings are specialized mechanical components designed for applications requiring precise rotational movement and load handling. These bearings feature a hollow structure, allowing for the passage of cables, tubing, or other components through the center, making them ideal for use in robotics, automation, and machine tool industries.
More
CRBT series cross roller bearing is an ultra-thin wall structure suitable for extremely limited structural situations.
More

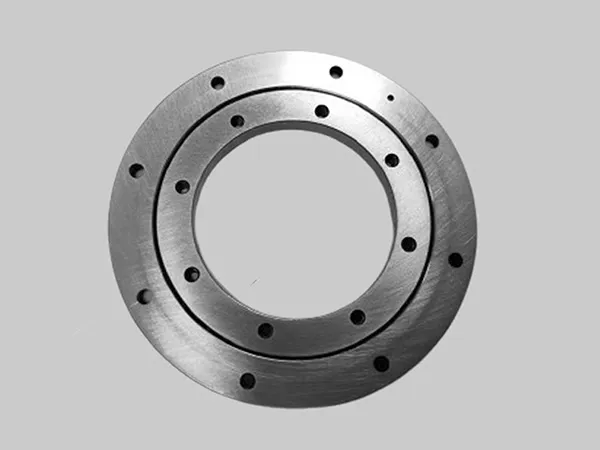

This series is an ultra-thin wall structure suitable with mounting holes for extremely limited structural situations，integral inner and outer rings with mounting holes, as both the outer and inner rings have mounting holes, there is no need to fix the flange and support during installation seat. In addition, due to the overall structure of both the outer and inner rings, installation has almost no impact on performance, thus achieving stable rotational precision degrees and torques. Suitable for situations where the outer and inner rings rotate.
