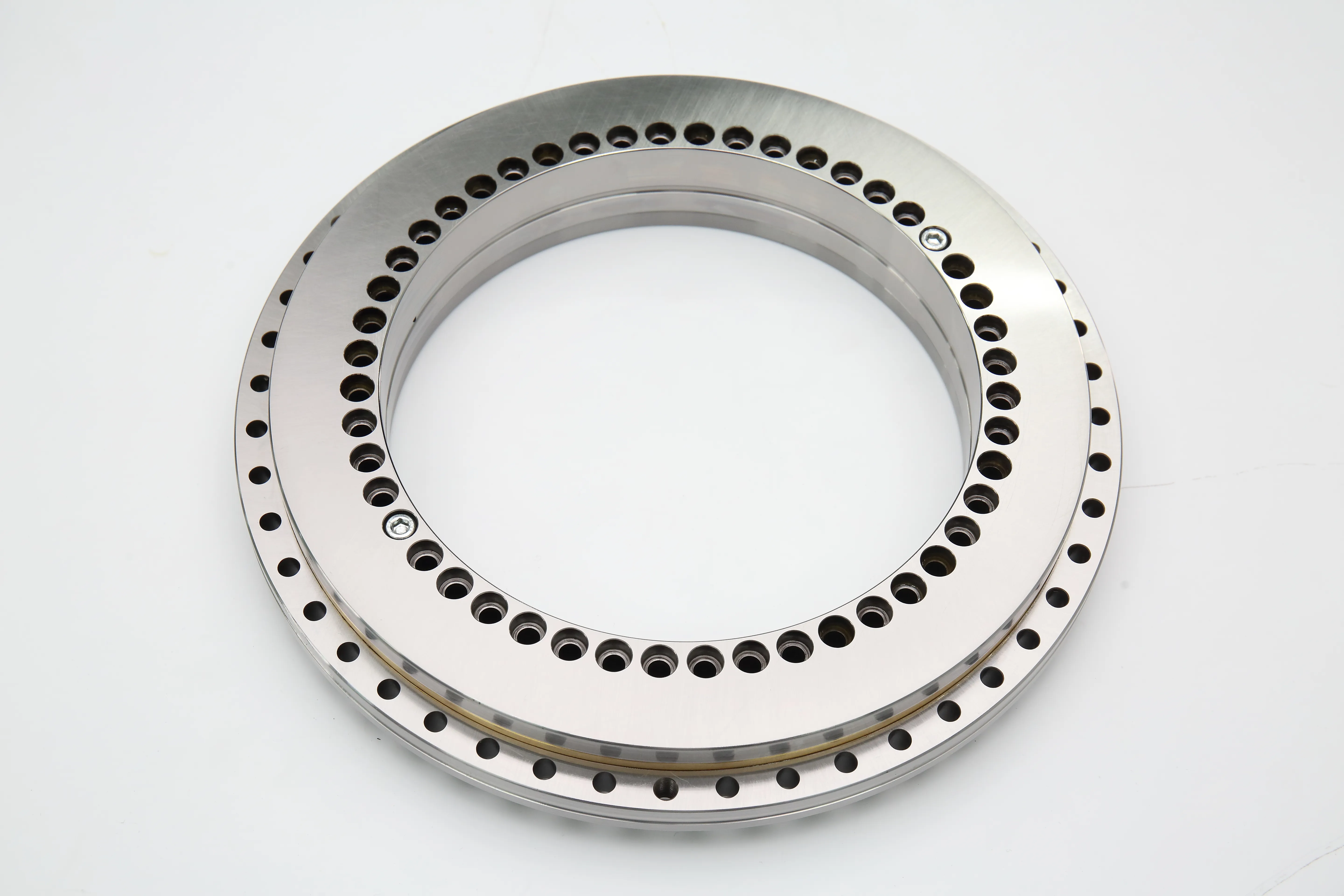

YRT rotary table bearing is a high-performance bearing that plays a crucial role in the mechanical field. Its unique design and multiple functions make it an indispensable component in various industrial equipment. The role of machinery is particularly extensive, mainly reflected in supporting rotational motion, load bearing, high-precision motion, rigid stability, and compact design. The YRT turntable bearings play a crucial role in four axis machining center.
1. Supports rotational motion
The primary role of YRT turntable bearings in four or five axis machining centers is to provide reliable rotational support. The design of its inner and outer ring structures and rolling elements ensures that the mechanical system can rotate smoothly in both horizontal and vertical directions. This is particularly crucial for applications that require precise positioning and directional control, such as machine tools and automated production lines.
2. Load bearing capacity
This type of bearing is designed specifically for high load applications and can effectively withstand radial and axial loads from rotational motion. This makes YRT turntable bearings an ideal choice for bearing heavy machinery and equipment loads, such as cranes, excavators, and industrial robots.
3. High precision motion
The YRT150 turntable bearing is known for its high manufacturing accuracy, ensuring the accuracy of rotational motion. This is very important for applications that require high controllability and precision operation, such as in the aerospace industry, semiconductor manufacturing, and precision instruments.
4. Rigidity and stability
In the design process of YRT turntable bearings, rigidity was taken into consideration, which helps maintain the stability of the mechanical system. This improves the system's vibration resistance and deformation resistance for YRT150 or YRT200, ensuring stability in high demand working environments such as high-speed trains and wind turbines.
5. Compact design
The compact design of the YRT260 turntable bearing enables it to complete rotation tasks in limited space. This has great advantages in applications with spatial constraints, such as compact spaces in robot joints, medical equipment, and factory automation.
YRT turntable bearings provide comprehensive and reliable rotational support for mechanical systems with their high-quality performance and multiple functions. From supporting rotational motion to load bearing, to high-precision motion and rigid stability, as well as the advantages of compact design, the YRT150 turntable bearings not only serve as a single mechanical support in four or five axes, but also have a critical impact on the performance and efficiency of industrial equipment. Therefore, in various applications, YRT turntable bearings have demonstrated their irreplaceable position in the mechanical field with their unique contributions.

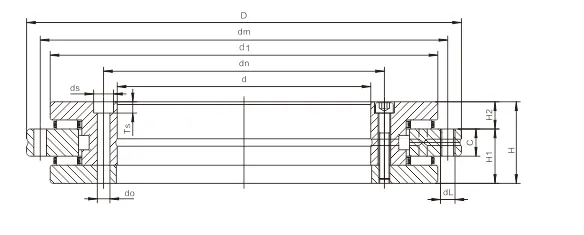

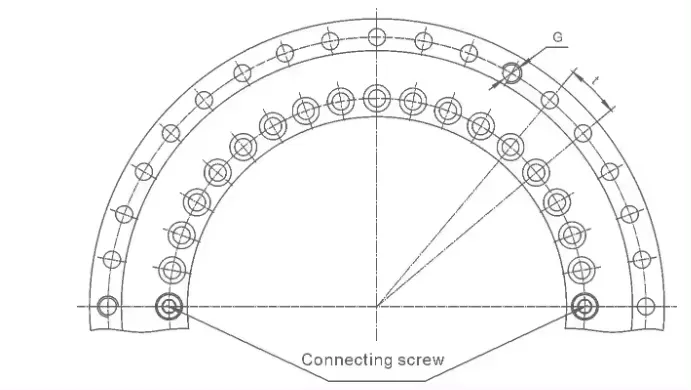

Model | Dimension | Fixing hole | |||||||||||||
d | D | H | H1 | H2 | C | d1 | dn | dm | Inner ring | Outer ring | |||||
mm | do | ds | Ts | QTY | dL | QTY | |||||||||
mm | mm | ||||||||||||||
YRT50 | 50 | 126 | 30 | 20 | 10 | 10 | 105 | 63 | 116 | 5.6 | 9 | 4.2 | 10 | 5.6 | 12 |
YRT80 | 80 | 146 | 35 | 23.35 | 11.65 | 12 | 130 | 92 | 138 | 5.6 | 10 | 4.2 | 10 | 4.6 | 12 |
YRT100 | 100 | 185 | 38 | 25 | 13 | 12 | 160 | 112 | 170 | 5.6 | 10 | 5.4 | 16 | 5.6 | 15 |
YRT120 | 120 | 210 | 40 | 26 | 14 | 12 | 184 | 135 | 195 | 7 | 11 | 6.2 | 22 | 7 | 21 |
YRT150 | 150 | 240 | 40 | 26 | 14 | 12 | 214 | 165 | 225 | 7 | 11 | 6.2 | 34 | 7 | 33 |
YRT180 | 180 | 280 | 43 | 29 | 14 | 15 | 244 | 194 | 260 | 7 | 11 | 6.2 | 46 | 7 | 45 |
YRT200 | 200 | 300 | 45 | 30 | 15 | 15 | 274 | 215 | 285 | 7 | 11 | 6.2 | 46 | 7 | 45 |
YRT260 | 260 | 385 | 55 | 36.5 | 18.5 | 18 | 345 | 280 | 365 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 |
YRT325 | 325 | 450 | 60 | 40 | 20 | 20 | 415 | 342 | 430 | 9.3 | 15 | 8.2 | 34 | 9.3 | 33 |
YRT395 | 395 | 525 | 65 | 42.5 | 22.5 | 20 | 486 | 415 | 505 | 9.3 | 15 | 8.2 | 46 | 9.3 | 45 |
YRT460 | 460 | 600 | 70 | 46 | 24 | 22 | 560 | 482 | 580 | 10 | 15 | 8.2 | 46 | 10 | 45 |
YRT580 | 580 | 750 | 90 | 60 | 30 | 30 | 700 | 610 | 720 | 11.4 | 18 | 11 | 46 | 11.4 | 42 |
YRT650 | 650 | 870 | 122 | 78 | 44 | 34 | 800 | 680 | 830 | 14 | 20 | 13 | 45 | 14 | 42 |
YRT850 | 850 | 1095 | 124 | 80.5 | 43.5 | 37 | 1018 | 890 | 1055 | 18.5 | 26 | 17 | 57 | 18.5 | 54 |
YRT950 | 950 | 1200 | 132 | 86 | 46 | 40 | 1130 | 990 | 1160 | 18.5 | 26 | 17 | 57 | 18.5 | 54 |
YRT1030 | 1030 | 1300 | 145 | 92.5 | 52.5 | 40 | 1215 | 1075 | 1255 | 18.5 | 26 | 17 | 66 | 18.5 | 66 |
YRT1200 | 1200 | 1490 | 164 | 108 | 56 | 52 | 1410 | 1240 | 1445 | 18.5 | 26 | 17 | 66 | 18.5 | 66 |
Model | Joint screw QTY | Lifting hole | Pitch | Screw tighten torque | Basic rated load | Limit speed | Bearing friction torque | Weight | ||||
Axial | Radial | |||||||||||
Dynamic | Static | Dynamic | Static | |||||||||
MA | Ca | Coa | Cr | Cor | Grease | |||||||
G | QTY | QTY*t | Nm | KN | r/min | Nm | Kg | |||||
YRT50 | 2 | / | / | 12*30° | 8.5 | 38 | 158 | 28.5 | 49.5 | 600 | 2.5 | 1.6 |
YRT80 | 2 | / | / | 12*30° | 8.5 | 56 | 255 | 42.5 | 100 | 530 | 3 | 2.4 |
YRT100 | 2 | M5 | 3 | 18*20° | 8.5 | 76.5 | 415 | 47.5 | 120 | 430 | 3 | 4.1 |
YRT120 | 2 | M8 | 3 | 24*15° | 14 | 102 | 540 | 52 | 143 | 340 | 7 | 5.3 |
YRT150 | 2 | M8 | 3 | 36*10° | 14 | 112 | 630 | 56 | 170 | 320 | 10 | 6.2 |
YRT180 | 2 | M8 | 3 | 48*7.5° | 14 | 118 | 710 | 69.5 | 200 | 280 | 12 | 7.7 |
YRT200 | 2 | M8 | 3 | 48*7.5° | 14 | 120 | 765 | 81.5 | 220 | 260 | 14 | 9.7 |
YRT260 | 2 | M12 | 3 | 36*10° | 34 | 160 | 1060 | 93 | 290 | 200 | 20 | 18.3 |
YRT325 | 2 | M12 | 3 | 36*10° | 34 | 275 | 1930 | 120 | 345 | 170 | 40 | 25 |
YRT395 | 2 | M12 | 3 | 48*7.5° | 34 | 300 | 2280 | 186 | 655 | 140 | 55 | 33 |
YRT460 | 2 | M12 | 3 | 48*7.5° | 34 | 355 | 2800 | 200 | 765 | 120 | 70 | 45 |
YRT580 | 2 | M12 | 6 | 48*7.5° | 68 | 490 | 4250 | 228 | 965 | 80 | 140 | 89 |
YRT650 | 2 | M12 | 6 | 48*7.5° | 116 | 1040 | 8000 | 490 | 1800 | 65 | 200 | 170 |
YRT850 | 2 | M16 | 6 | 60*6° | 284 | 1000 | 8650 | 455 | 1730 | 50 | 300 | 253 |
YRT950 | 2 | M17 | 6 | 60*6° | 284 | 1290 | 11400 | 530 | 2040 | 40 | 600 | 312 |
YRT1030 | 2 | M18 | 6 | 72*5° | 284 | 1380 | 12000 | 620 | 2650 | 35 | 800 | 375 |
YRT1200 | 2 | M19 | 6 | 72*5° | 284 | 1435 | 12850 | 745 | 2800 | 25 | 1000 | 450 |
