How to distinguish between good and bad cross roller bearings?

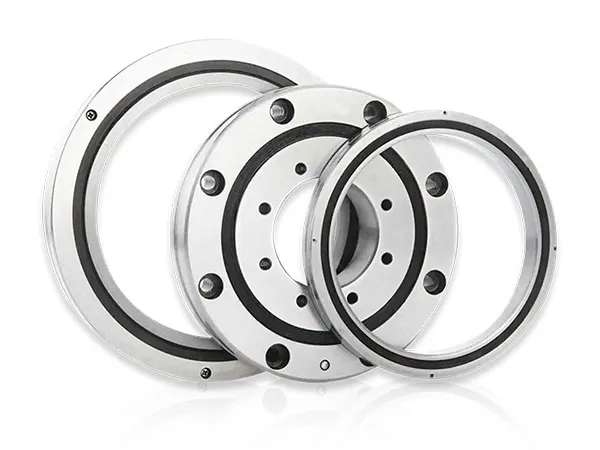

Cross roller bearings have the advantages of high rotational accuracy, easy installation, and space saving, widely used in various fields such as machine tools, robot joints, medical equipment, etc. These fields have high requirements for bearing quality. So, how can we distinguish between good and bad cross roller bearings in the selection process? Below will introduce the methods for judging the quality of bearings.

Quality judgment method for cross roller bearings

1. Packaging

In terms of bearing outer packaging, under normal circumstances, bearing companies with own brand will have their own company logo and product packaging. They will also arrange factories with qualified production conditions to produce product packaging. Therefore, the packaging is very clear from lines to color blocks, and will have their own company logo.

2. Look at the steel stamp on the bearing

Generally, the bearing will have its own brand's lettering, logo, and label, and the handwriting will be very clear. Steel stamp technology is usually used to press the lettering before overheating treatment, so although the font is small, it is deeply recessed and very clear. And some counterfeit products with poor quality will have very blurry fonts and are prone to falling off.

3. Listen for any noise

You can pick up the bearing and hold the inner sleeve of the bearing with your left hand, then move the outer sleeve with your right hand to rotate it and listen for any noise. Due to the outdated production conditions and completely manual workshop style operation of most counterfeit products, impurities such as sand are inevitably mixed in during the production process, resulting in a noise during rotation. And high-quality products will not have this situation, because impurities can affect the normal use of bearings.

4. Check if there is a lot of oil stains

When treating high-quality bearings with rust prevention, even if rust prevention oil or other treatments are used, there will not be many residual oil stains. The bearings still look bright, while some poorly treated bearings can be touched with rust prevention oil.

5. Check chamfer treatment

Check if the chamfer treatment is uniform. Chamfering refers to the junction between the horizontal and vertical surfaces. High quality bearings have very uniform chamfers, while some counterfeit bearings may not be fully processed at these edges and corners due to immature production technology.

Key points for selecting cross roller bearings

1. Size range

The external dimensions are important parameters. First, you need to know how large the bearing you need to use, or in other words, the installation size of the equipment that needs to install this bearing, before determining the size of the bearing.

2. Structural form

Because cross roller bearings have the same external dimensions, there are many types of structures, including outer ring split type (RB/RA), inner ring split type (RE), and integral structure (RU/CRBH). The key depends on whether the part of the bearing that needs to drive rotation needs to be installed on the inner or outer ring of the bearing. If outer ring rotation is required, inner ring segmentation type must be used.similarly, if inner ring rotation accuracy is required, outer ring segmentation type must be used, and both inner and outer rings require relatively high rotation accuracy, which is suitable for using an integrated structure of inner and outer rings.

3. Installation method

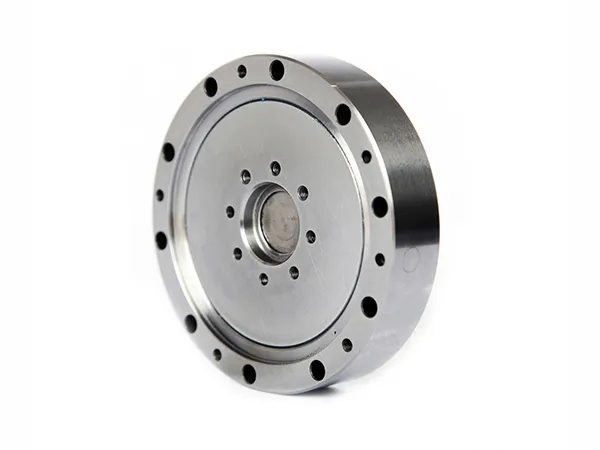

Cross roller bearings can be divided into two categories based on installation methods. One is that both the inner and outer rings have installation holes, similar to a slewing bearing. Its installation is relatively simple, and it is directly connected to the equipment through connecting bolts. Another type is that there are no installation holes on both the inner and outer rings, mainly through the interference fit of the bearing seat, compression flange, shaft, and bearing inner diameter.

4. Load bearing capacity

When selecting a type of cross roller, it is necessary to understand whether it can withstand the load applied by the equipment, and determine whether it is suitable based on the load bearing capacity requirements of the equipment design and the rated load of the corresponding bearings.

5. Accuracy and clearance

The accuracy and clearance of cross roller bearings are the core of cross roller bearings. The clearance of bearings can affect factors such as the rigidity, noise, lifespan, and rotational speed of crossed rollers.

The above is an introduction to how to distinguish between good and bad cross roller bearings and how to correctly select them. In addition, our bearings have rich experience in the production of cross roller bearings. If you need further information, please feel free to contact with us for consultation.
